Low Pressure Breathing Air System

Portable LPBA Compressors & Systems

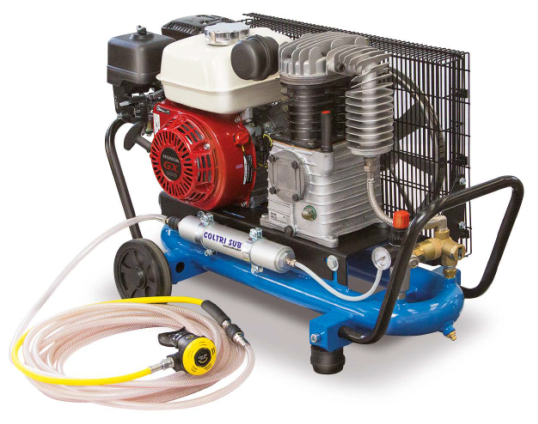

Portable LOW PRESSURE DIRECT BREATHING Compressor. These are single stage portable machines designed to produce breathing air at low pressure for direct breathing by using a mask or octopus (for under water diving) or by using an air-line set (for surface/ confined space entry). Excellent for applications where you need continuous flow of air. Complete package including breather hose & regulator/ face mask can be supplied

  • F.A.D./ Op. Pressure: 330 lpm/ 8 Bar
  • Prime Mover: 2 to 3 kw Motor or 4-5 HP Petrol Engine
  • Single or Double User Outlet
  • Optional Food Grade Breather Hose & Respiratory System
  • Comes with 2 WHEELS
Responsive Image
Responsive Image

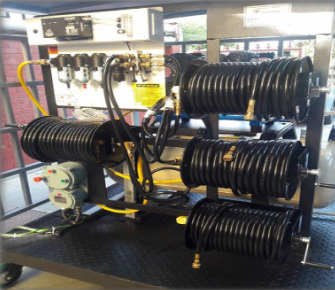

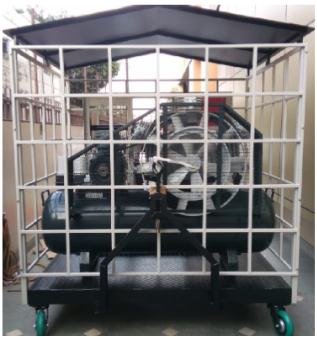

As a one-point solution, we offer SKID or TRAILER MOUNTED SYSTEMS which include: OIL FREE COMPRESSOR with STAND-BY AIR RECEIVER, BREATHING AIR FILTRATION with ONLINE CO MONITORING & ALARM, DISTRIBUTION, 4/ 6/ 8 USER OUTLETS with HOSE REELS and LPBA HOSES as well as RESPIRATORS. System can be TRAILER MOUNTED or SKID MOUNTED. System can be for use in SAFE AREA or HAZARDOUS AREA (Explosion Proof Motor, Starter, Controls, Alarms, Monitors). Very useful for Chemical Industries/ Pharma Sector/ Petro-chemical/ Oil & Gas/ Fertilizer industry for LONG DURATION USE for MULTIPLE USERS.

Responsive Image
Responsive Image

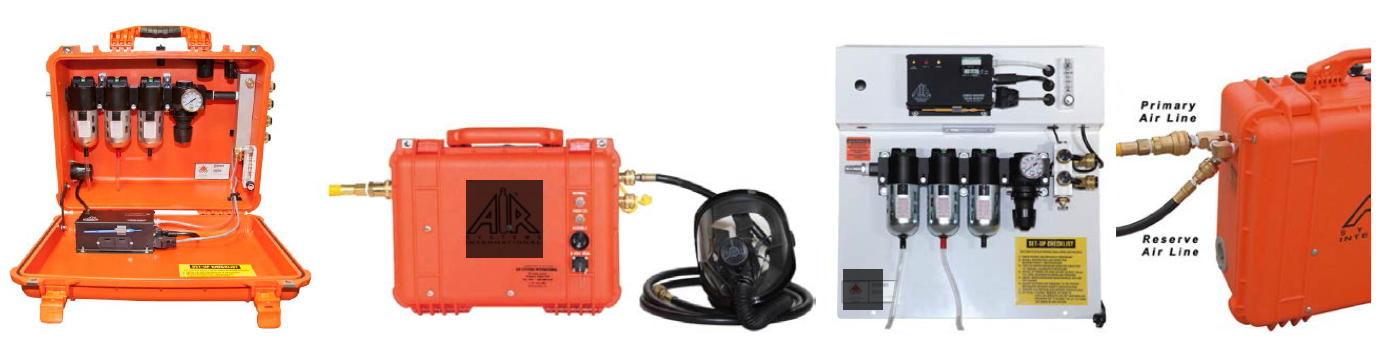

We offer Low Pressure Breathing Air Filtration Systems designed for Plant Air Compressors to make the same air suitable for breathing air purpose. We also offer complete Compressed Air Systems including LP Compressor/ Dryer/ Breathing Air Filtration – with online monitoring of air for presence of CO and O2 content. These filtration systems are either PORTABLE/ MOVABLE or FIXED/ PANEL MOUNTED systems having one inlet and several outlets (depending on the size of the system). The Portable filtration system designed for those who want to you their own plant air to convert it into Grade D Breathing Air, we offer PORTABLE or FIXED/ PANEL MOUNTED Stand Along BA Filtration Systems. These 3 stage filtration systems Removes liquids and particulate to 5.0 micron particle size followed by Oil coalescing and ultra-fine particulate filtration that is 99.99% efficient at 0.01 micron particle size & Charcoal to remove organic vapors and objectionable odors. These come with In-Line Carbon Monoxide (CO) & Optional CO/O2 monitoring that works on 9 VDC battery or optionally 230V AC (CSA approved intrinsically safe monitors come with 9 VDC only for work in hazardous locations). External mounted CO warning LED lights and audible alarm 95 dBA is standard. Comes with Pressure Regulators and Multiple outlets with respirator couplings provided with safety lock features. Comes in flow rates from 30cfm till 250 cfm (custom panel mounted units upto 3000 cfm available) and user outlets of 2/ 4/ 8 or custom design.

We can offer custom-made solutions for your BREATHING AIR REQUIREMENT. Some of the solutions include Monitoring of Toxic Gases in atmosphere like H2S/ Ammonia etc. and relaying the running of the compressor system with that; Complete Plant Breathing Air Requirement for 100- 200 users with Compressor, Air Storage & Breathing Filtration; High Pressure Cascade Systems; combination HP & LP Systems - Systems with BACKUP SUPPLY; Confined Space VENTILATION Systems etc.
