CNG/ BIO GAS COMPRESSORS

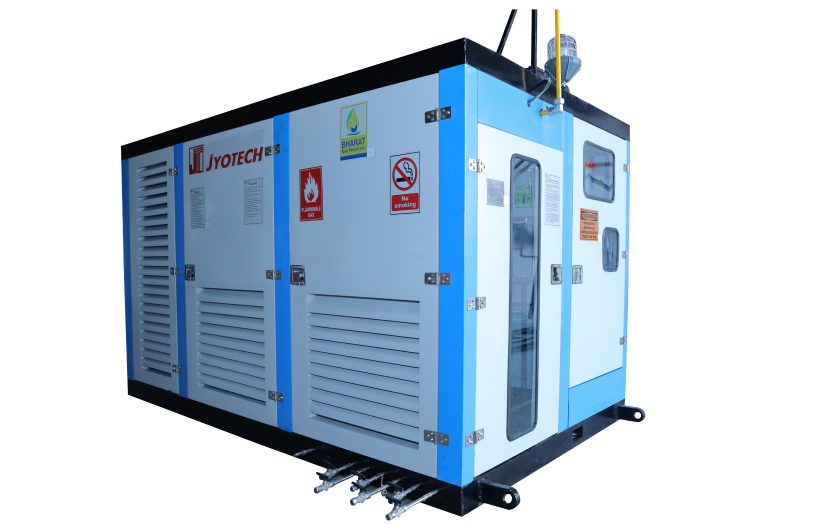

      GEO-A Series
  • Suction Pressure: As per client reqt.
  • Discharge Pressure: 250 Barg
  • Capacity: 200 - 2600 Sm3/hr
  • Required Horse Power: 50 - 175 HP
      GEO-B
  • Suction Pressure: As per client reqt.
  • Discharge Pressure: 250 Barg
  • Capacity: 600 - 2700 Sm3/hr
  • Required Horse Power: 175 - 250 HP

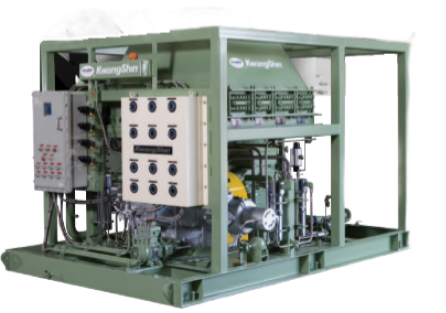

      GEO-C2 & C4
  • Suction Pressure: As per client reqt.
  • Discharge Pressure: 250 Barg
  • Capacity: 800 - 4400 Sm3/hr
  • Required Horse Power: 275 - 600 HP
Responsive Image
Responsive Image

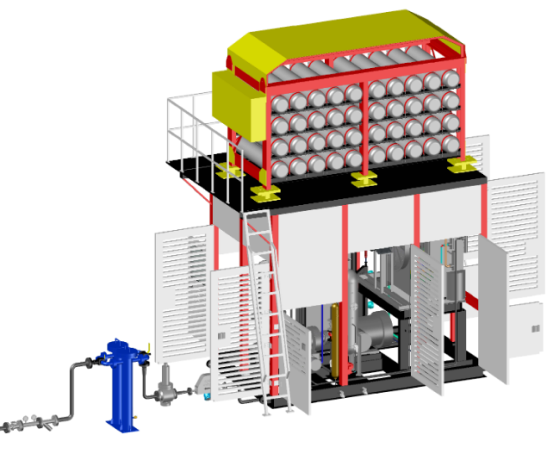

  • Integrated package having Compressor, Storage Cylinders, Priority fill panel, Control panel & Dispenser
  • Designed in conformance to API, ISO, ANSI & ASME standards
  • Equipped with top mounted Air-cooled heat exchanger.
  • Best optimization of space
  • Smaller foot prints 5 sqm.
  • Least vibration & more stability
  • Up to 750 WL capacity type IV CNG cascade
  • Capacity: 250-600 SCMH
  • Driver rating: 37 to 90 kW motor driven
  • Suction Pressure: 14 to 19 Kg/cm2g
  • Discharge Pressure: 250 Kg/cm2g
Responsive Image

    This machine can be used as daughter booster compressor when there is no gas pipeline and later-on can be used as Online Compressor when gas pipe line is available.

  • Capacity: 600 Nm3/hr
  • Driver rating: 14- 200 barg
  • Suction Pressure: 250 barg
  • Discharge Pressure: 120 HP
Responsive Image

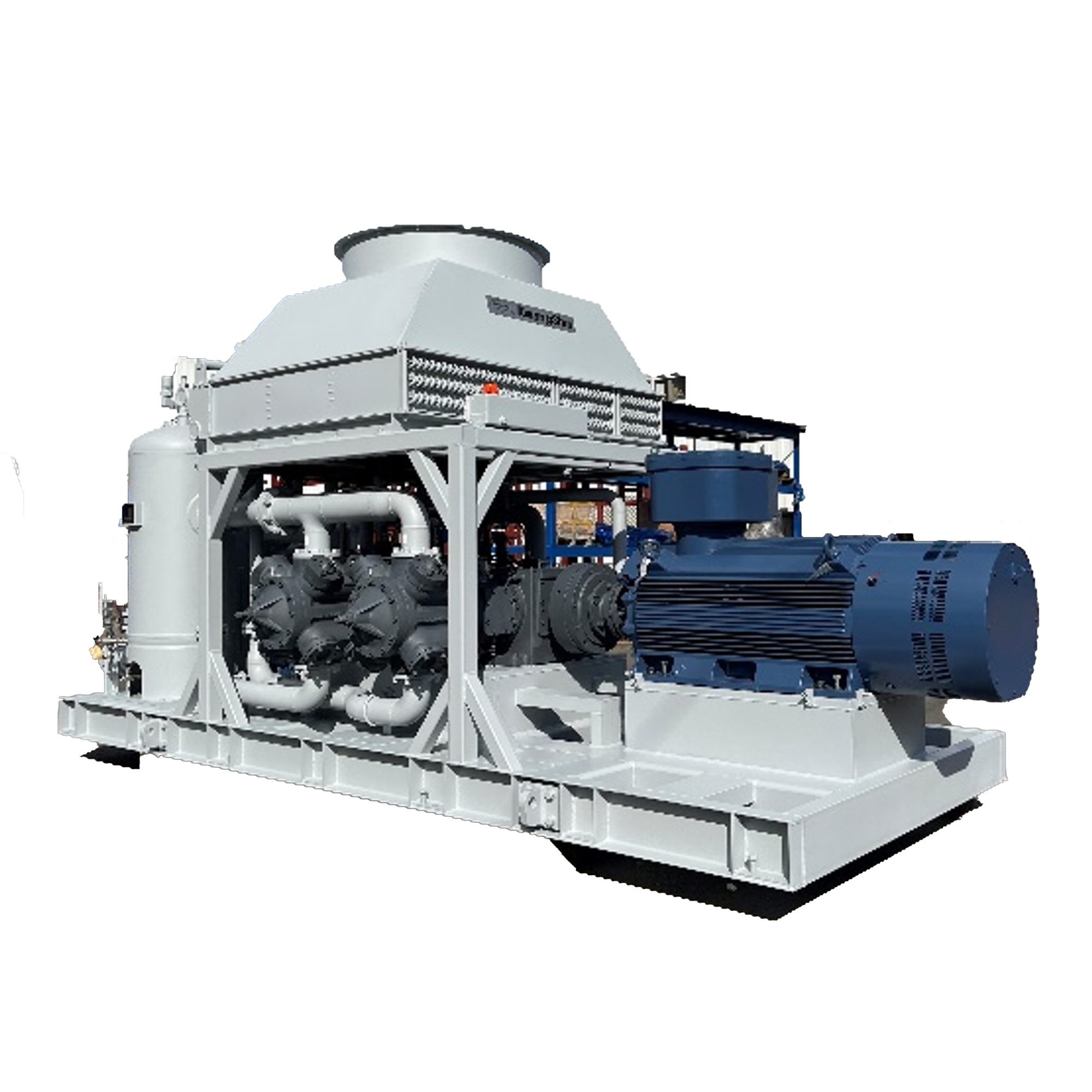

BIO GAS COMPRESSORS
  • Type: As per client reqt.
  • Capacity Range: Up to 1200 Nm3/hr
  • Suction Pressure: As per Requirement
  • Discharge Pressure: Up to 250 Barg
  • Applicable Gas: Purified Biogas
  • Applicable Standard: Fully designed and manufactured based on maker standard, API-11P or equivalent standards.

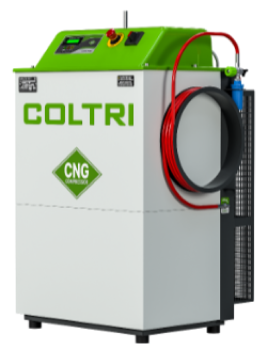

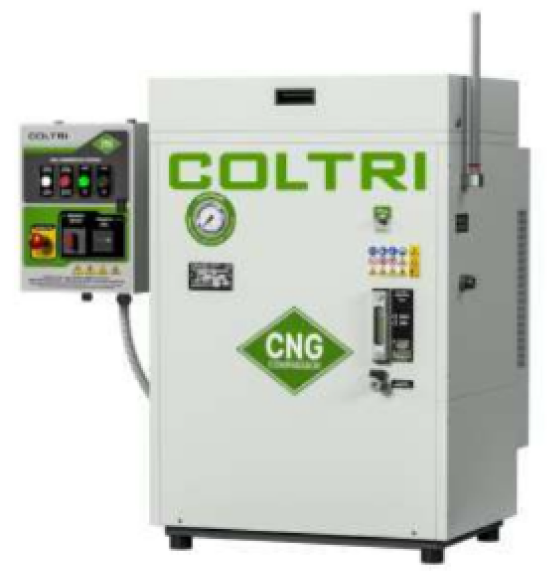

  • Capacity: 3 to 40 m3/hr
  • Suction Pressure: 17 to 200 mBar (upto 6 bar for boosters)
  • Discharge Pressure: 200/ 250 Barg
  • Gas Handled: CNG & BioGas
  • Smallest Footprint, can be mounted on movable skid for easy movement
  • Light Weight & Robust Construction
  • Suitable for small to medium scale Plants and housing societies
  • Comes with 4.5m hose and NGV1 Nozzle
Responsive Image
Responsive Image
Responsive Image

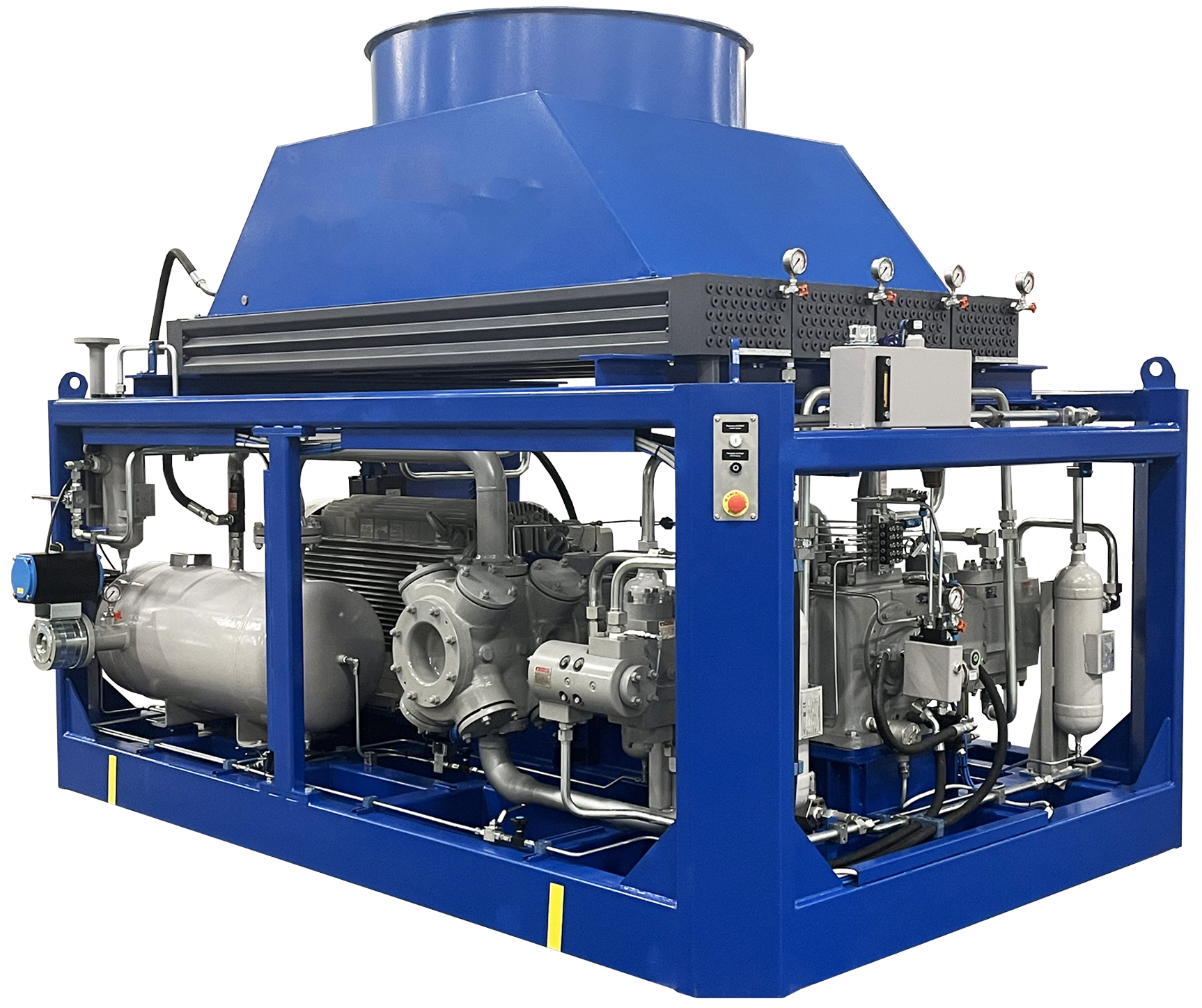

  • Type: Reciprocating, Lubricated, Horizontal Balanced-opposed
  • Capacity: 200 to 800 Nm3/hr
  • Suction pressure: 0.3 to 0.5 Bar(g)
  • Discharge pressure: Upto 250 Bar(g)
  • Cooling medium: Closed Loop Cooling Water/ Air Cooled/ Water Cooled
Responsive Image
Responsive Image
  • Type: Reciprocating, Lubricated, Horizontal Balanced-opposed
  • Capacity: 400 to 3000 Nm3/hr
  • Suction pressure: 7 to 16 Barg
  • Discharge pressure: 250 Barg
  • Cooling medium: Closed Loop Cooling Water/ Air Cooled
Responsive Image
